SCH AUTOMATICO CVS250B REGULABLE 4X200A 25KA 380VAC LV525322
Disponible
Código: P11397
Para ver el precio y stock de los productos, debes iniciar sesión. Si no tienes cuenta con nosotros, te invitamos a registrarte.
IVA incluido
$0 + IVA

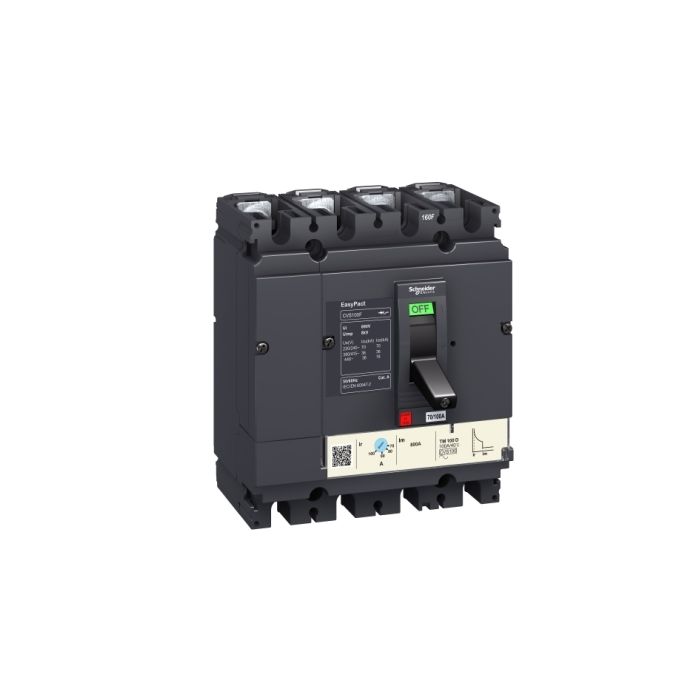

Easypact CVS - CVS250B TM200D circuit breaker - 4P/4dLabel: EasyPact CVS - range: EasyPact - earth-leakage protection: without - [In] rated current: 250 A at 40 °C - breaking capacity code: B - network type: AC - range of product: Easypact CVS100...250 - breaking capacity: 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 ,25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 ,40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 - utilisation category: category A - product name: EasyPact CVS - product or component type: circuit breaker - trip unit name: TM-D - trip unit technology: thermal-magnetic - trip unit rating: 200-200 A at 40 °C - protection type: short-circuit protection (magnetic),overload protection (thermal) - device short name: CVS250B - device application: distribution - poles description: 4P - protected poles description: 4d - neutral position: left - Range Presentation: EasyPact CVS range is the easy choice for quality and value.
Designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings, EasyPact CVS circuit breakers deliver a high level of performance and cost-saving functionality that is unusual in their price range.
- Rated current from 16 to 630 A
- Breaking capacity from 25 to 50 kA at 400/415 V
- 3 and 4 pole versions
- 3 frame sizes
- Thermal-magnetic and electronic protection available for the entire range
- Extended, adjustable thermal protection from 0.7 to 1 times (TMD) or 0.5 to 1 times (electronic) the rating of the trip unit
- Common accessories and auxiliaries with other Schneider Electric MCCB offers
- Suitable for isolation
- Earth-leakage protection by associated Vigi Module
- Switch-disconnector versions also available
- Compliance with international standards: IEC 60947-2, CCC, EAC and other local certifications
- Green Premium product - Range Benefits:
- Specifiers – Conforms to international standards: IEC60947-2, and meets the requirements of the majority of common protection applications
- Panel builders – Ease of installation. Only three frame sizes up to 630 A. Common accessories for complete range. Economic and competitive solution, yet meets major requirements of specifiers and clients
- OEMs – High endurance and maintenance free operation ensures continuous performance of machines
- Clients – Well balance of budget and quality, performance, reliability - Range Application Presentation: Protection and management of low-voltage electrical installations:
- Standard applications: industries, buildings
- Earth-leakage protection
- Motor protection
- Generator protection
- Switch-disconnectors
- Nombre técnico:SCH AUTOMATICO CVS250B REGULABLE 4X200A 25KA 380VAC LV525322
- Marca:Schneider
- Color:Sin Especificar
